PAPERplus^® COILER MEANS TO RELIABLY PROTECT HEAVY AND SENSITIVE GOODS

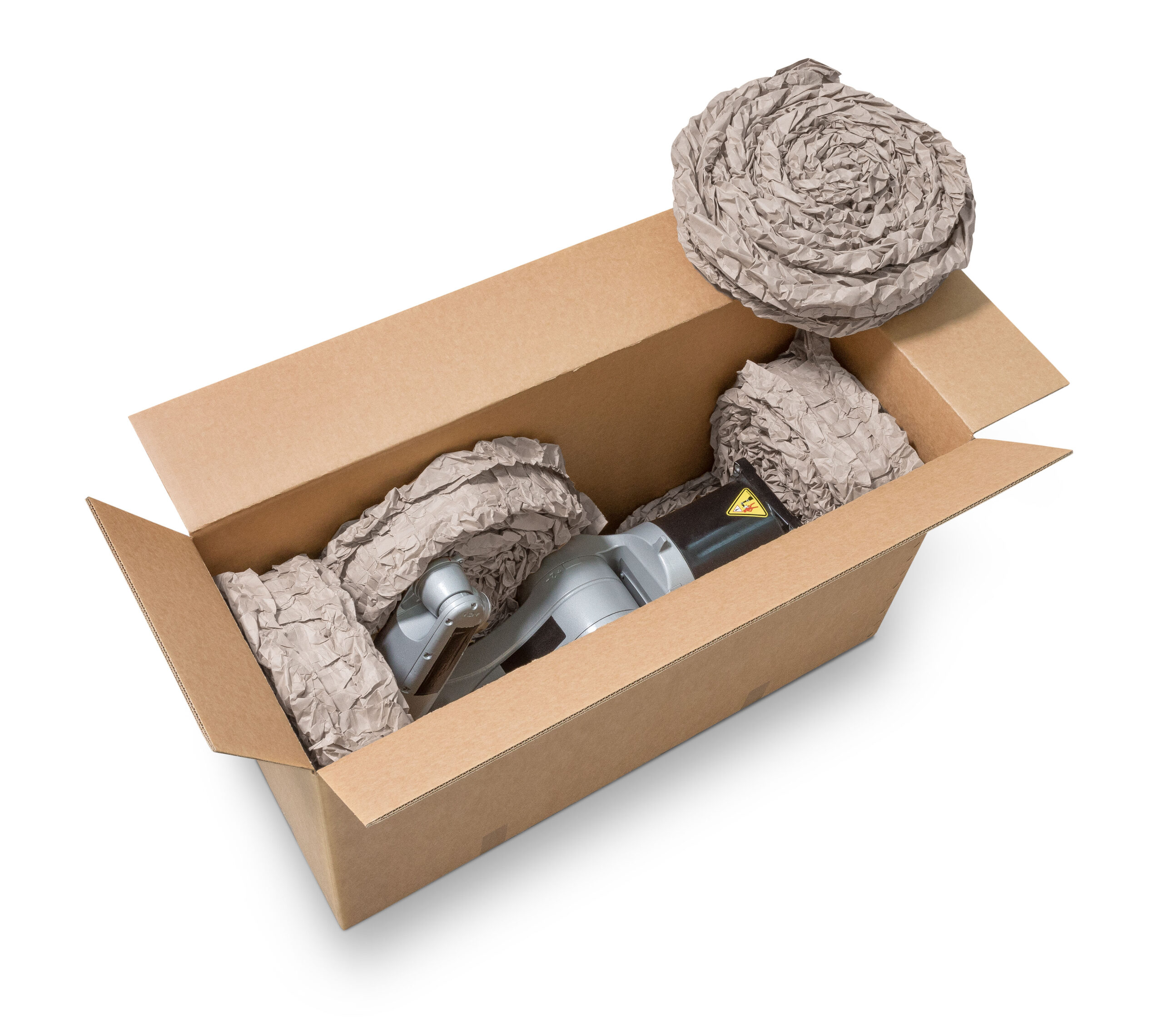

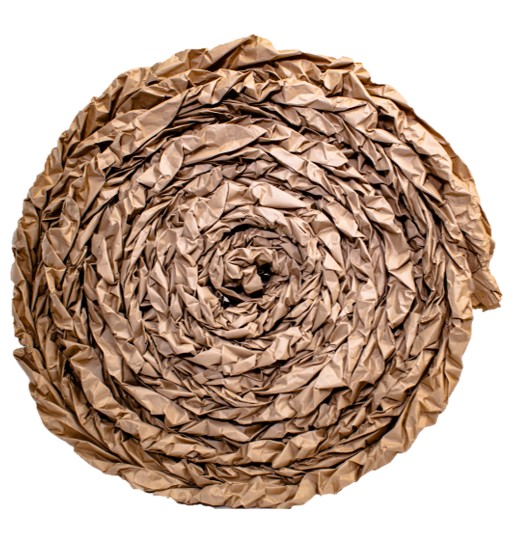

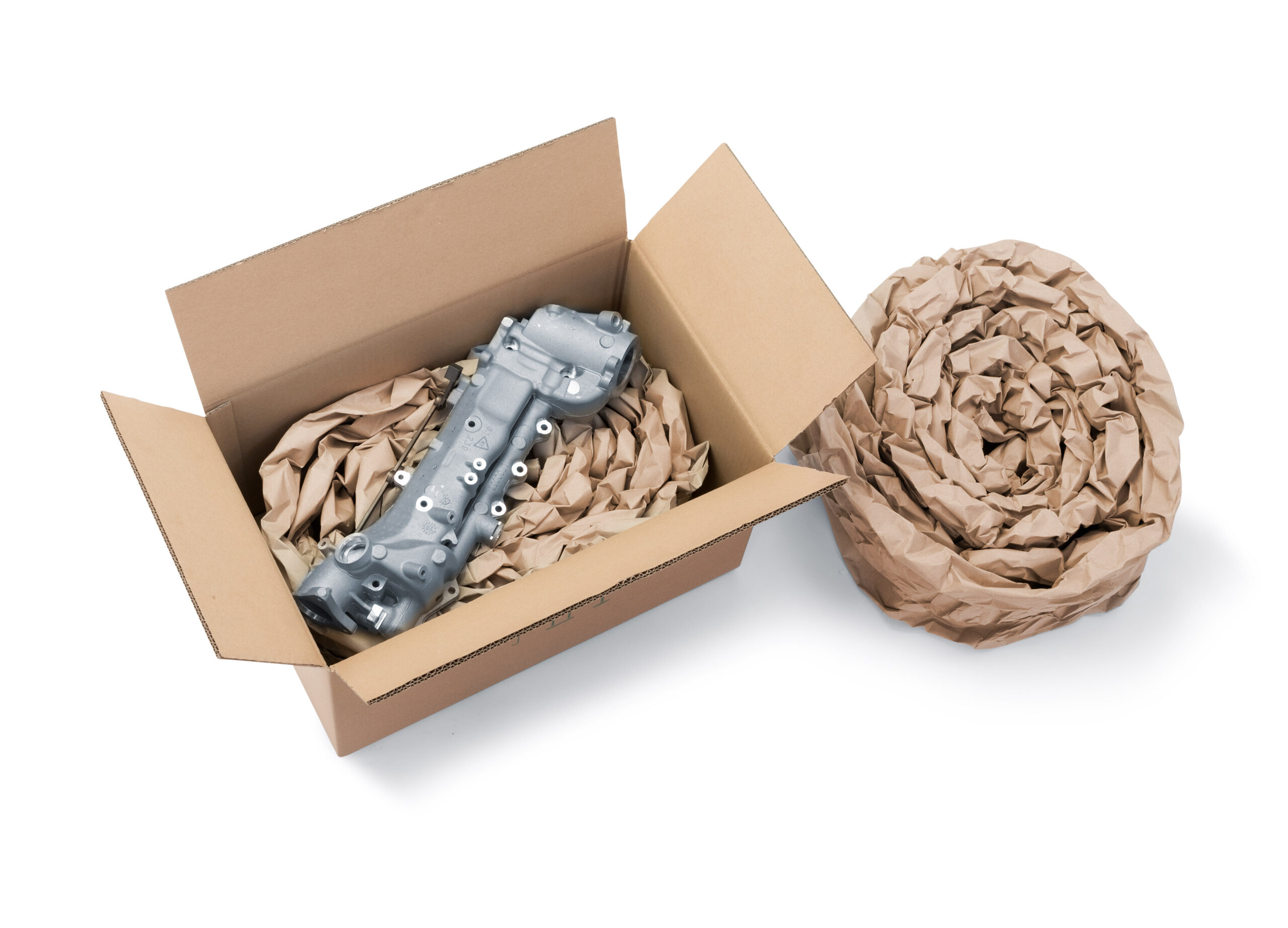

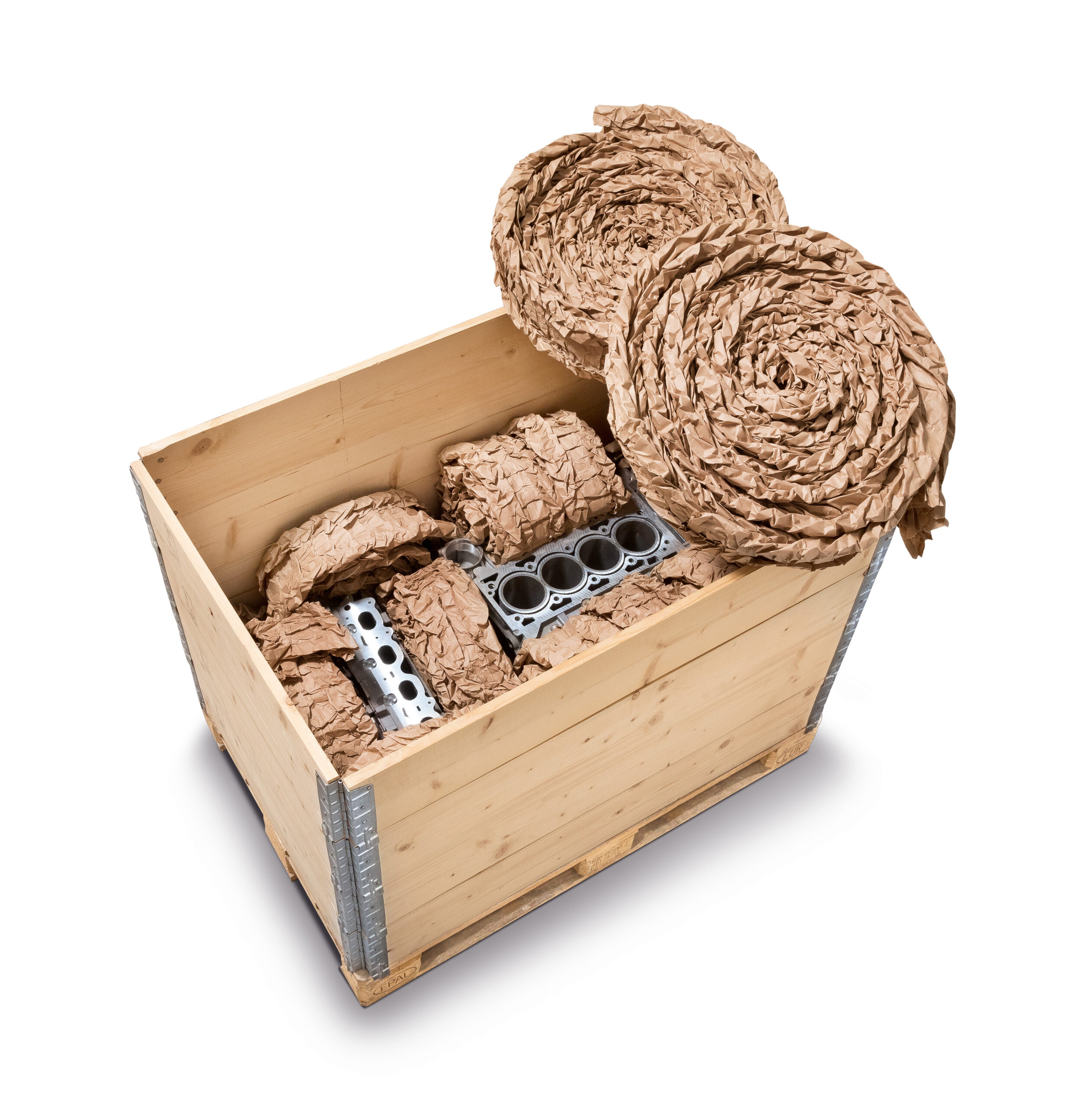

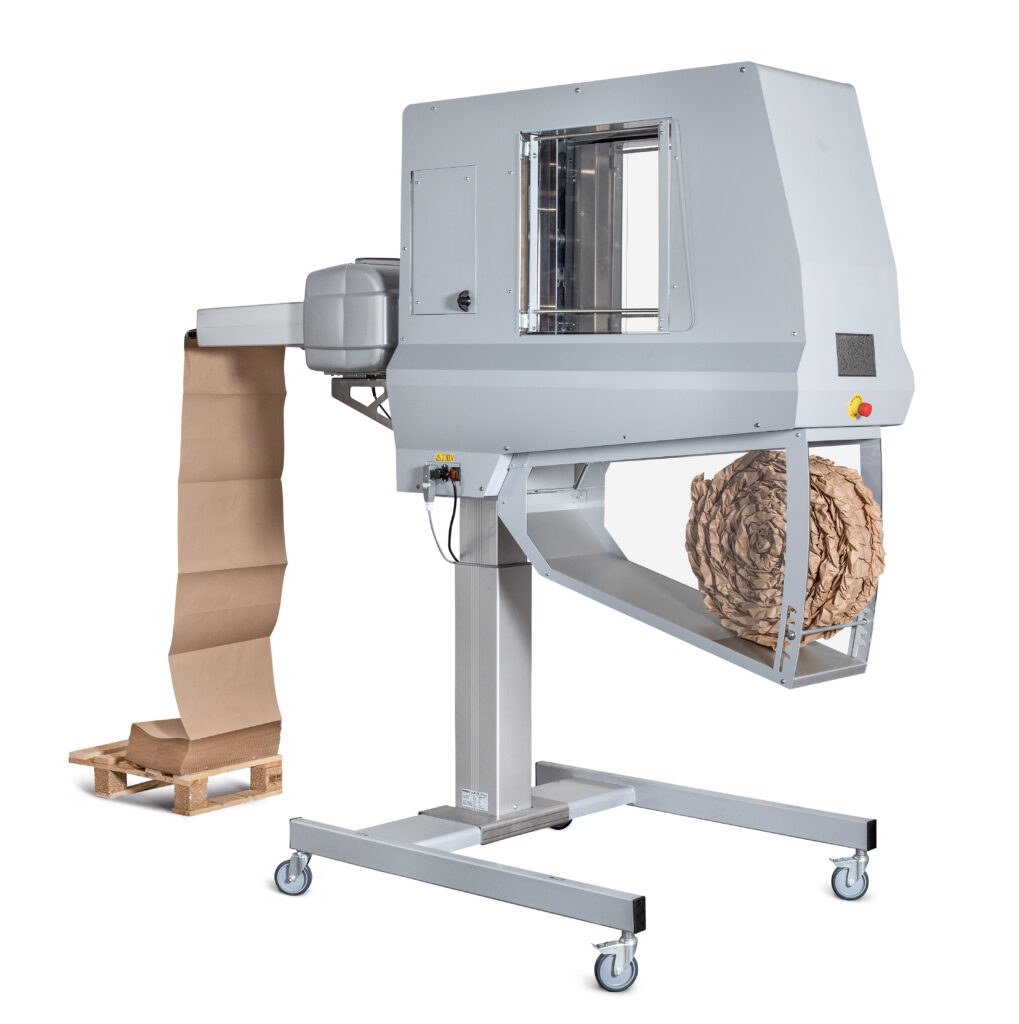

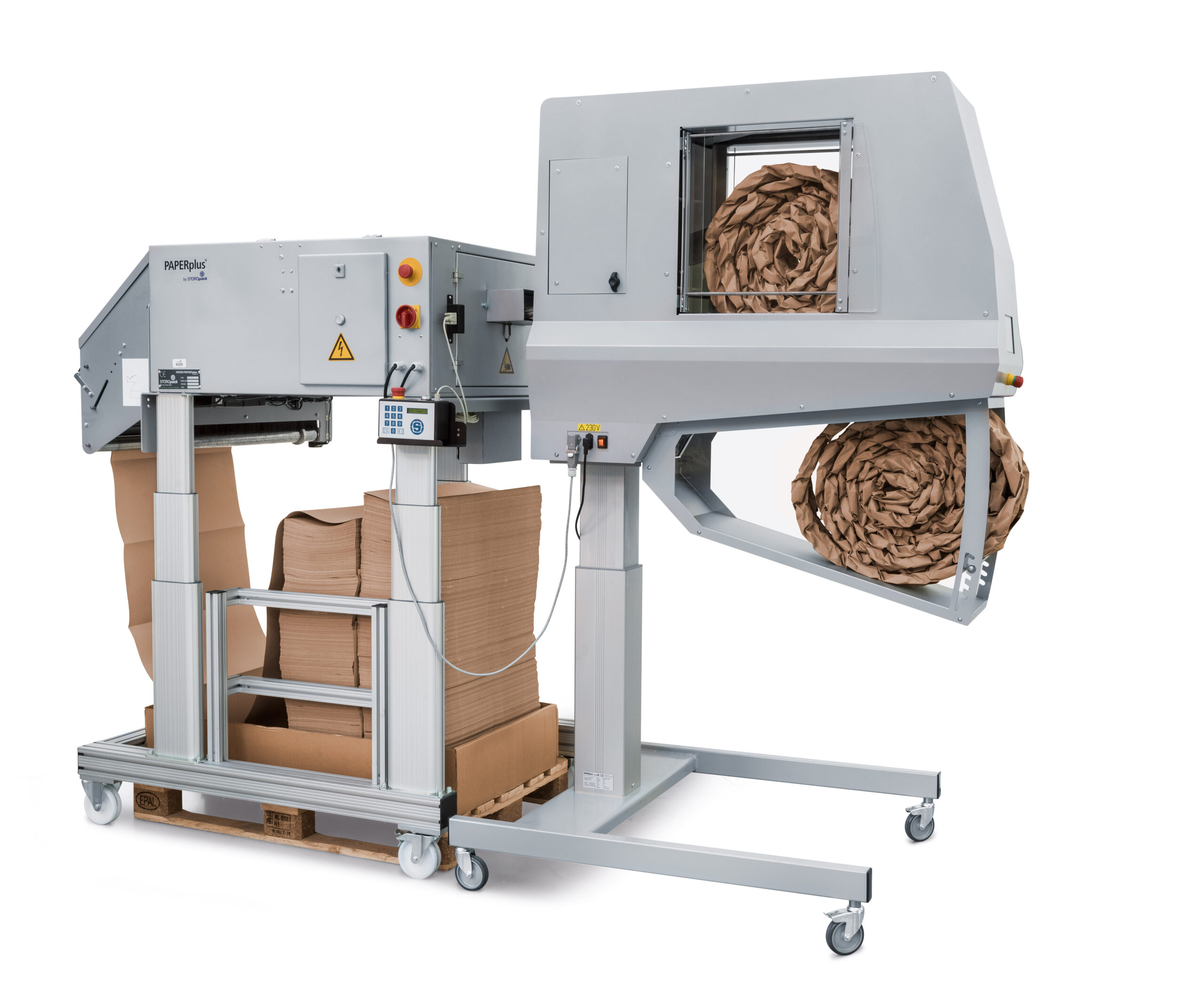

Manufacturers and service providers who ship large, heavy, and fragile products can now benefit from our flexible PAPERplus^® Coiler system. The machine processes the paper pads that are preformed by the PAPERplus^® Classic CX or PAPERplus^® Track paper cushion machines – and turns them into robust coils of paper cushioning. These coils keep products weighing between 30 and 500 kilograms reliably safe. Depending on the size of the shipping goods, up to 200 cartons a day can be packed with coils of paper cushion using the PAPERplus^® Coiler.

The coils of paper cushion can be precisely tailored to the goods concerned using a touch-screen display: the coil diameter, for instance, can be set at between 20 and 50 centimeters. Users can also choose from various degrees of firmness and select whether they wish to have compact coils or whether they prefer looser coils. This guarantees an optimized use of packaging material. Automatically attached adhesive dots provide for a secure hold and enable the easy handling of the finished coil.

PAPERplus^® Coiler at a Glance

Suitable Shipping Goods: Goods between 30 and 500 kg.
Applications: Void-Fill, Block & Brace and Cushion Applications.
Compatible Systems: PAPERplus Classic^® CX and PAPERplus^® Track.
Variable: Adjustable coil diameter from 20 to 50 cm.
Flexibility: Option to produce tight, compact coils or looser coils with a hole in the center.
Powerful: Produces paper cushion coils for up to 200 shipping cartons per day.
Usability: User-Friendly touchscreen control.
